19 FER - Structural#
Contributors
The slide deck embedded in the Jupyter notes was contributed by Dr. Sunghyun Park (sunghyun.park@ttu.edu)
Warning
Fall 2025 no Structural SME to participate
Readings#
Videos#
Structural Engineering Topics on FE#
Approximately 10 questions covering:
Analysis of statically determinant beams, columns
trusses, and frames
Deflection of statically determinant beams, trusses, frames
Column analysis: buckling, boundary conditions
Structural determinacy
Stability analysis of beams, trusses, and frames
Elementary statically indeterminate structures
Loads, load combinations
Load paths: dead, live, lateral, influence lines
Load paths: moving loads, tributary areas
Design of steel components beams, columns, tension members, connections
Design of reinforced concrete components
Codes and design philosophies, beams, columns

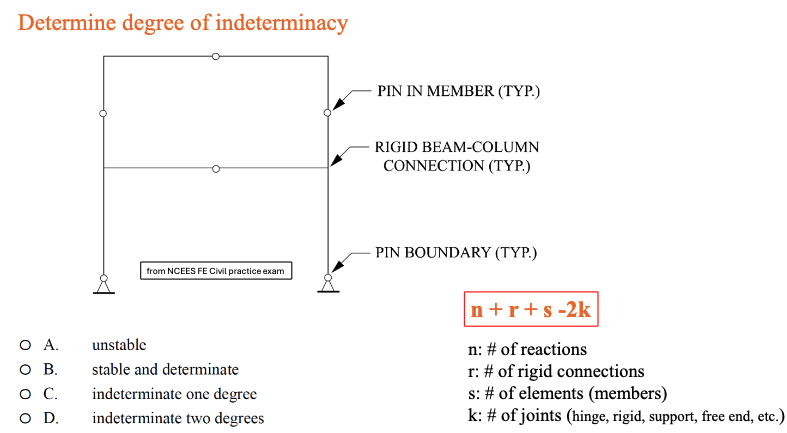

Example 1#
If sum is zero, system is stable and determinate.
B

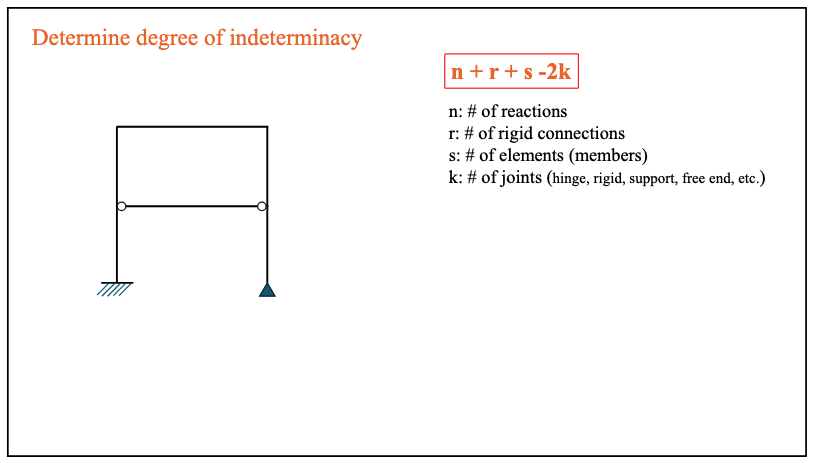

Example 2#
3

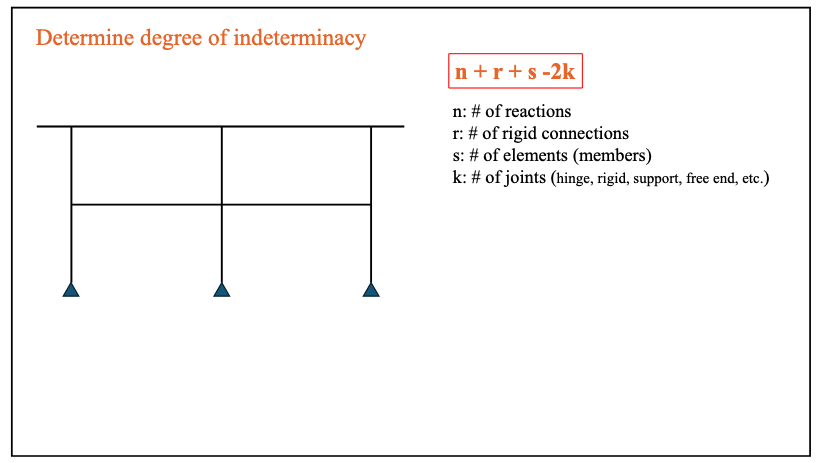

Example 3#
9

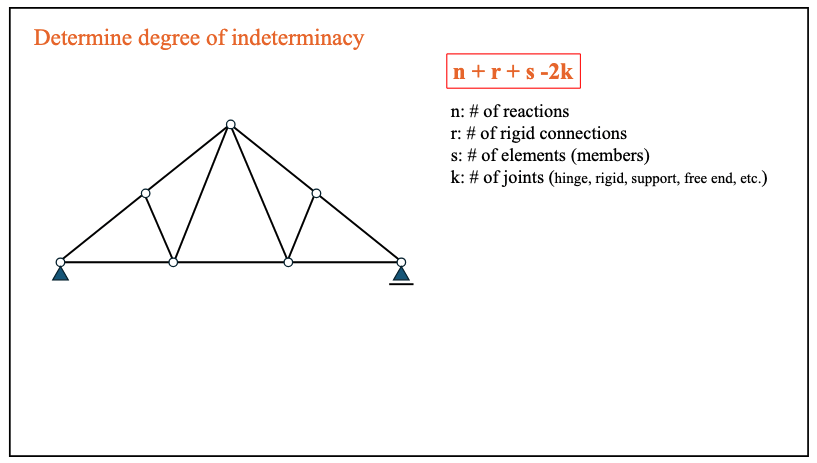

Example 4#
0

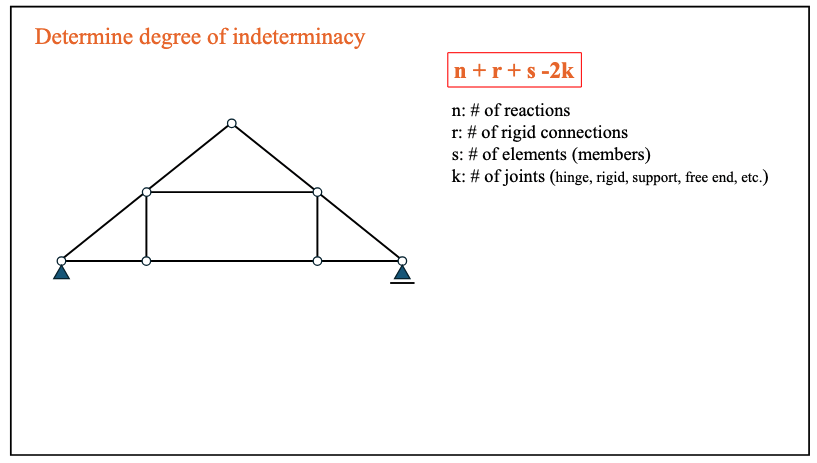

Example 5#
-1

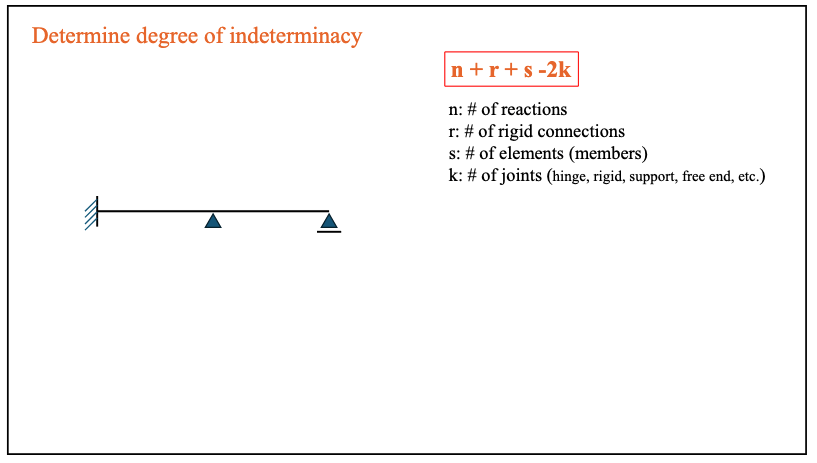

Example 6#
3

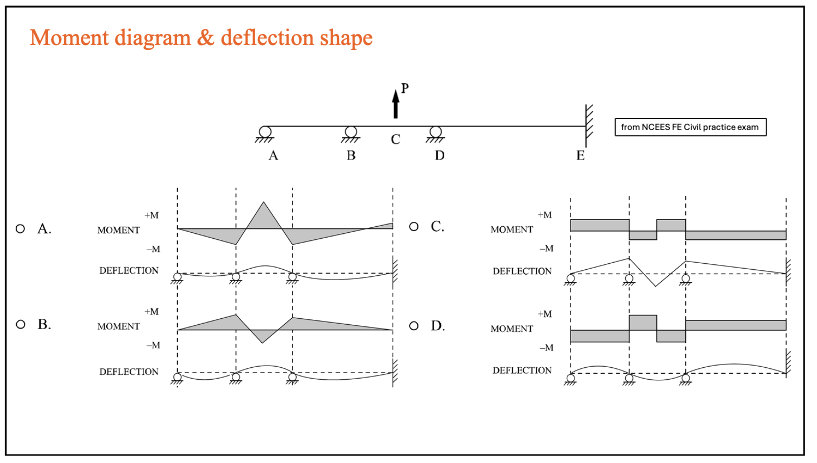

Example 7#

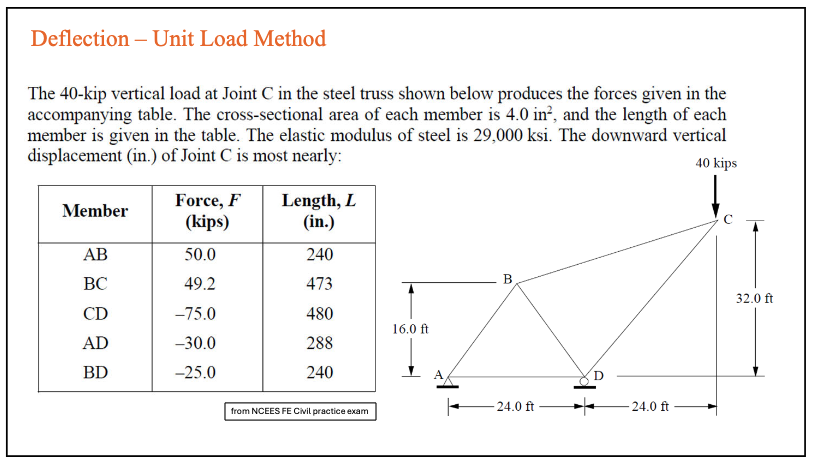

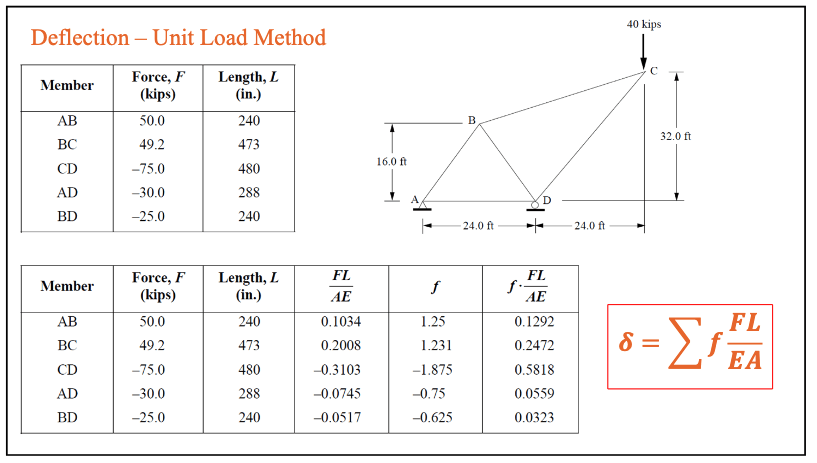

Example 8#

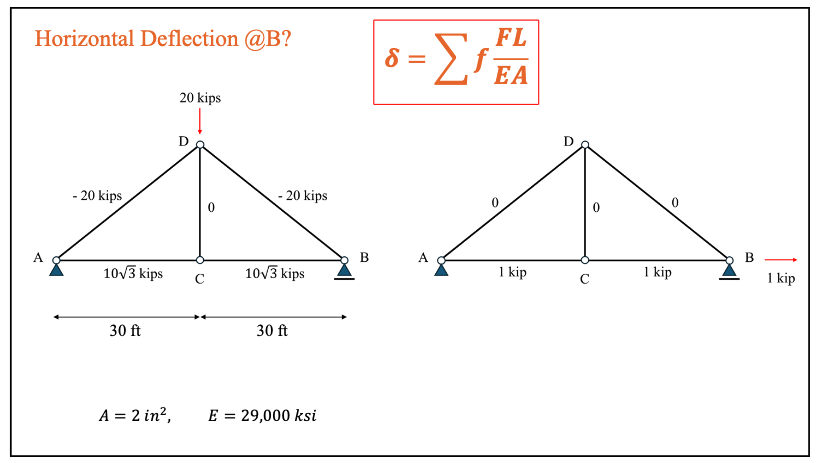

Example 9#
0.215 inches

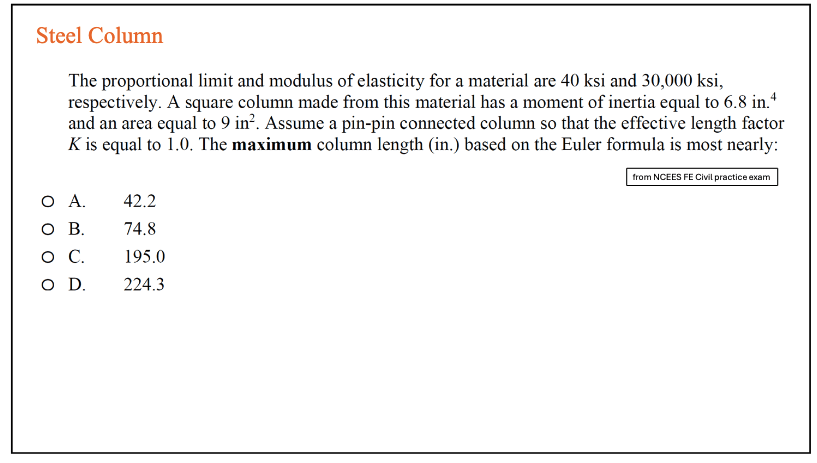

Example 10#
B

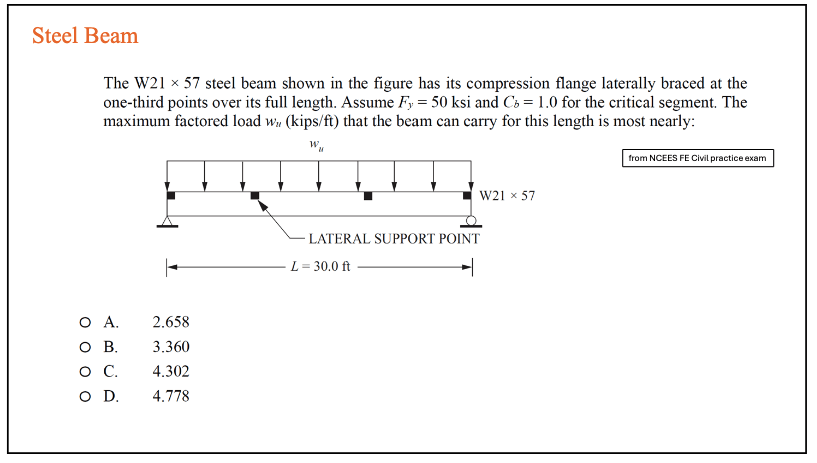

Example 11#
B

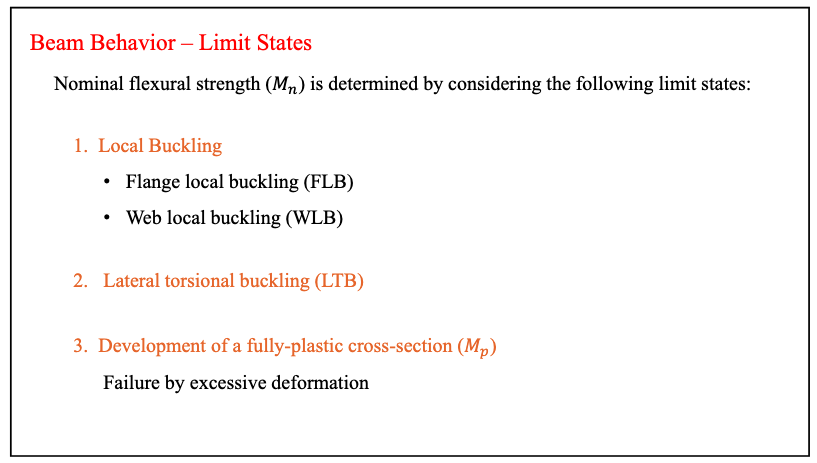

Example 12#

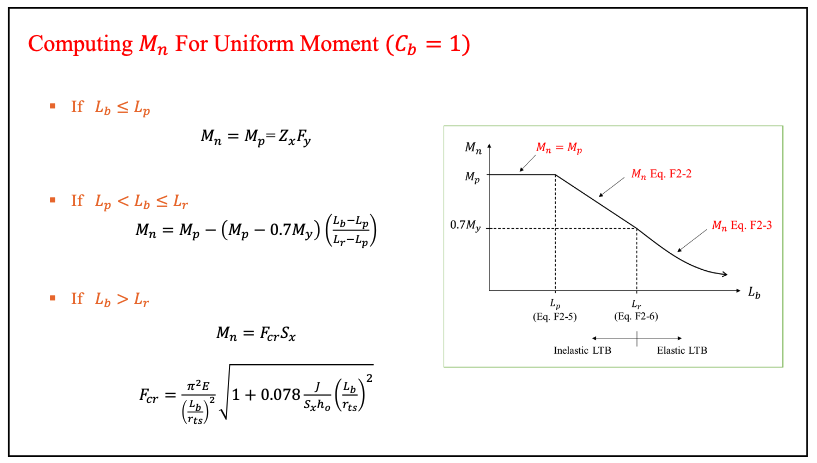

Example 13#

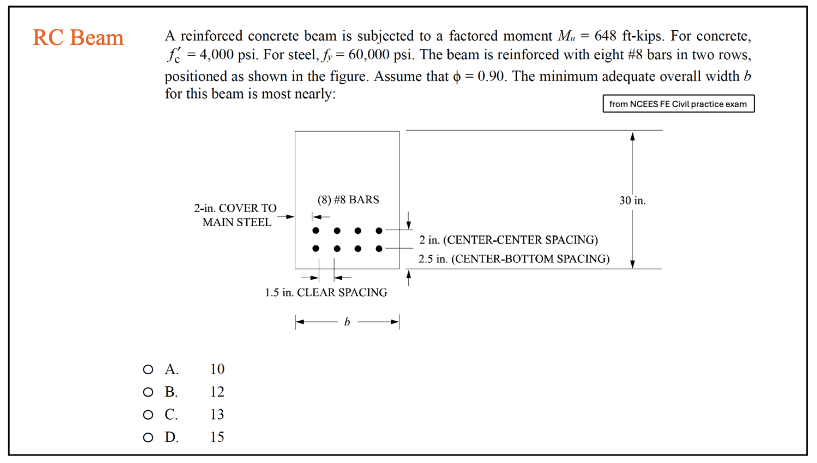

Example 14#
D
