Laboratory 31: "On The Virtue and Value of Classification" or "Who Ordered a Classy Fire?"

LAST NAME, FIRST NAME

R00000000

ENGR 1330 Laboratory 31 - In-Lab


For the last few sessions we have talked about regression ...


We discussed ...

  • The theory and implementation of simple linear regression in Python
  • OLS and MLE methods for estimation of slope and intercept coefficients
  • Errors (Noise, Variance, Bias) and their impacts on model's performance
  • Confidence and prediction intervals
  • And Multiple Linear Regressions



  • What if we want to predict a discrete variable?

    The general idea behind our efforts was to use a set of observed events (samples) to capture the relationship between one or more predictor (AKA input, indipendent) variables and an output (AKA response, dependent) variable. The nature of the dependent variables differentiates regression and classification problems.

Regression problems have continuous and usually unbounded outputs. An example is when you’re estimating the salary as a function of experience and education level. Or all the examples we have covered so far!

On the other hand, classification problems have discrete and finite outputs called classes or categories. For example, predicting if an employee is going to be promoted or not (true or false) is a classification problem. There are two main types of classification problems:

- Binary or binomial classification:

exactly two classes to choose between (usually 0 and 1, true and false, or positive and negative)

- Multiclass or multinomial classification:

three or more classes of the outputs to choose from


  • When Do We Need Classification?

    We can apply classification in many fields of science and technology. For example, text classification algorithms are used to separate legitimate and spam emails, as well as positive and negative comments. Other examples involve medical applications, biological classification, credit scoring, and more.

Logistic Regression

  • What is logistic regression? Logistic regression is a fundamental classification technique. It belongs to the group of linear classifiers and is somewhat similar to polynomial and linear regression. Logistic regression is fast and relatively uncomplicated, and it’s convenient for users to interpret the results. Although it’s essentially a method for binary classification, it can also be applied to multiclass problems.



Logistic regression is a statistical method for predicting binary classes. The outcome or target variable is dichotomous in nature. Dichotomous means there are only two possible classes. For example, it can be used for cancer detection problems. It computes the probability of an event occurrence. Logistic regression can be considered a special case of linear regression where the target variable is categorical in nature. It uses a log of odds as the dependent variable. Logistic Regression predicts the probability of occurrence of a binary event utilizing a logit function. HOW? Remember the general format of the multiple linear regression model:

Where, y is dependent variable and x1, x2 ... and Xn are explanatory variables. This was, as you know by now, a linear function. There is another famous function known as the Sigmoid Function, also called logistic function. Here is the equation for the Sigmoid function:

This image shows the sigmoid function (or S-shaped curve) of some variable 𝑥:

As you see, The sigmoid function has values very close to either 0 or 1 across most of its domain. It can take any real-valued number and map it into a value between 0 and 1. If the curve goes to positive infinity, y predicted will become 1, and if the curve goes to negative infinity, y predicted will become 0. This fact makes it suitable for application in classification methods since we are dealing with two discrete classes (labels, categories, ...). If the output of the sigmoid function is more than 0.5, we can classify the outcome as 1 or YES, and if it is less than 0.5, we can classify it as 0 or NO. This cutoff value (threshold) is not always fixed at 0.5. If we apply the Sigmoid function on linear regression:

Notice the difference between linear regression and logistic regression:

logistic regression is estimated using Maximum Likelihood Estimation (MLE) approach. Maximizing the likelihood function determines the parameters that are most likely to produce the observed data.

Let's work on an example in Python!


Example 1: Diagnosing Diabetes


The "diabetes.csv" dataset is originally from the National Institute of Diabetes and Digestive and Kidney Diseases. The objective of the dataset is to diagnostically predict whether or not a patient has diabetes, based on certain diagnostic measurements included in the dataset.

Several constraints were placed on the selection of these instances from a larger database. In particular, all patients here are females at least 21 years old of Pima Indian heritage.

The datasets consists of several medical predictor variables and one target variable, Outcome. Predictor variables includes the number of pregnancies the patient has had, their BMI, insulin level, age, and so on.

Columns Info.
Pregnancies Number of times pregnant
Glucose Plasma glucose concentration a 2 hours in an oral glucose tolerance test
BloodPressure Diastolic blood pressure (mm Hg)
SkinThickness Triceps skin fold thickness (mm)
Insulin 2-Hour serum insulin (mu U/ml)
BMI Body mass index (weight in kg/(height in m)^2)
Diabetes pedigree Diabetes pedigree function
Age Age (years)
Outcome Class variable (0 or 1) 268 of 768 are 1, the others are 0

Let's see if we can build a logistic regression model to accurately predict whether or not the patients in the dataset have diabetes or not?

Acknowledgements: Smith, J.W., Everhart, J.E., Dickson, W.C., Knowler, W.C., & Johannes, R.S. (1988). Using the ADAP learning algorithm to forecast the onset of diabetes mellitus. In Proceedings of the Symposium on Computer Applications and Medical Care (pp. 261--265). IEEE Computer Society Press.

In [2]:
import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import sklearn.metrics as metrics
import seaborn as sns
%matplotlib inline
In [3]:
# Import the dataset:
data = pd.read_csv("diabetes.csv")
data.rename(columns = {'Pregnancies':'pregnant', 'Glucose':'glucose','BloodPressure':'bp','SkinThickness':'skin',
                       'Insulin	':'Insulin','BMI':'bmi','DiabetesPedigreeFunction':'pedigree','Age':'age',
                              'Outcome':'label'}, inplace = True)
data.head()
Out[3]:
pregnant glucose bp skin Insulin bmi pedigree age label
0 6 148 72 35 0 33.6 0.627 50 1
1 1 85 66 29 0 26.6 0.351 31 0
2 8 183 64 0 0 23.3 0.672 32 1
3 1 89 66 23 94 28.1 0.167 21 0
4 0 137 40 35 168 43.1 2.288 33 1
In [4]:
data.describe()
Out[4]:
pregnant glucose bp skin Insulin bmi pedigree age label
count 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000 768.000000
mean 3.845052 120.894531 69.105469 20.536458 79.799479 31.992578 0.471876 33.240885 0.348958
std 3.369578 31.972618 19.355807 15.952218 115.244002 7.884160 0.331329 11.760232 0.476951
min 0.000000 0.000000 0.000000 0.000000 0.000000 0.000000 0.078000 21.000000 0.000000
25% 1.000000 99.000000 62.000000 0.000000 0.000000 27.300000 0.243750 24.000000 0.000000
50% 3.000000 117.000000 72.000000 23.000000 30.500000 32.000000 0.372500 29.000000 0.000000
75% 6.000000 140.250000 80.000000 32.000000 127.250000 36.600000 0.626250 41.000000 1.000000
max 17.000000 199.000000 122.000000 99.000000 846.000000 67.100000 2.420000 81.000000 1.000000
In [5]:
#Check some histograms
sns.distplot(data['pregnant'], kde = True, rug= True, color ='orange')
Out[5]:
<matplotlib.axes._subplots.AxesSubplot at 0x1dcca695b48>
In [6]:
sns.distplot(data['glucose'], kde = True, rug= True, color ='darkblue')
Out[6]:
<matplotlib.axes._subplots.AxesSubplot at 0x1dccaa4f288>
In [63]:
sns.distplot(data['label'], kde = False, rug= True, color ='purple', bins=2)
Out[63]:
<matplotlib.axes._subplots.AxesSubplot at 0x285dfb3a0c8>
In [8]:
sns.jointplot(x ='glucose', y ='label', data = data, kind ='kde')
Out[8]:
<seaborn.axisgrid.JointGrid at 0x1dccac73f88>

Selecting Feature: Here, we need to divide the given columns into two types of variables dependent(or target variable) and independent variable(or feature variables or predictors).

In [65]:
#split dataset in features and target variable
feature_cols = ['pregnant', 'glucose', 'bp', 'skin', 'Insulin', 'bmi', 'pedigree', 'age']
X = data[feature_cols] # Features
y = data.label # Target variable

Splitting Data: To understand model performance, dividing the dataset into a training set and a test set is a good strategy. Let's split dataset by using function train_test_split(). You need to pass 3 parameters: features, target, and test_set size. Additionally, you can use random_state to select records randomly. Here, the Dataset is broken into two parts in a ratio of 75:25. It means 75% data will be used for model training and 25% for model testing:

In [66]:
# split X and y into training and testing sets
from sklearn.model_selection import train_test_split
X_train,X_test,y_train,y_test=train_test_split(X,y,test_size=0.25,random_state=0)

Model Development and Prediction: First, import the Logistic Regression module and create a Logistic Regression classifier object using LogisticRegression() function. Then, fit your model on the train set using fit() and perform prediction on the test set using predict().

In [67]:
# import the class
from sklearn.linear_model import LogisticRegression

# instantiate the model (using the default parameters)
#logreg = LogisticRegression()
logreg = LogisticRegression()
# fit the model with data
logreg.fit(X_train,y_train)

#
y_pred=logreg.predict(X_test)
C:\Users\Farha\Anaconda3\lib\site-packages\sklearn\linear_model\logistic.py:432: FutureWarning: Default solver will be changed to 'lbfgs' in 0.22. Specify a solver to silence this warning.
  FutureWarning)


  • How to assess the performance of logistic regression?

    Binary classification has four possible types of results:

    • True negatives: correctly predicted negatives (zeros)
    • True positives: correctly predicted positives (ones)
    • False negatives: incorrectly predicted negatives (zeros)
    • False positives: incorrectly predicted positives (ones)

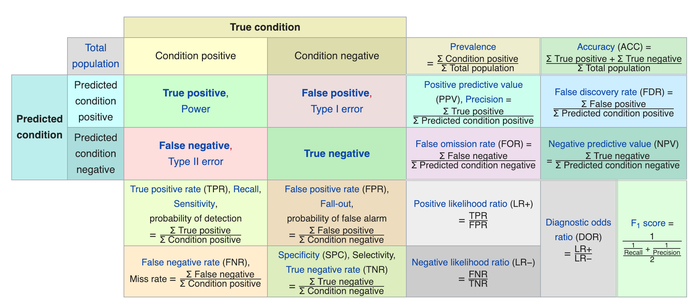

      We usually evaluate the performance of a classifier by comparing the actual and predicted outputsand counting the correct and incorrect predictions. A confusion matrix is a table that is used to evaluate the performance of a classification model.



      Some indicators of binary classifiers include the following:

    • The most straightforward indicator of classification accuracy is the ratio of the number of correct predictions to the total number of predictions (or observations).

    • The positive predictive value is the ratio of the number of true positives to the sum of the numbers of true and false positives.
    • The negative predictive value is the ratio of the number of true negatives to the sum of the numbers of true and false negatives.
    • The sensitivity (also known as recall or true positive rate) is the ratio of the number of true positives to the number of actual positives.
    • The precision score quantifies the ability of a classifier to not label a negative example as positive. The precision score can be interpreted as the probability that a positive prediction made by the classifier is positive.
    • The specificity (or true negative rate) is the ratio of the number of true negatives to the number of actual negatives.

The extent of importance of recall and precision depends on the problem. Achieving a high recall is more important than getting a high precision in cases like when we would like to detect as many heart patients as possible. For some other models, like classifying whether a bank customer is a loan defaulter or not, it is desirable to have a high precision since the bank wouldn’t want to lose customers who were denied a loan based on the model’s prediction that they would be defaulters. There are also a lot of situations where both precision and recall are equally important. Then we would aim for not only a high recall but a high precision as well. In such cases, we use something called F1-score. F1-score is the Harmonic mean of the Precision and Recall:

This is easier to work with since now, instead of balancing precision and recall, we can just aim for a good F1-score and that would be indicative of a good Precision and a good Recall value as well.

Model Evaluation using Confusion Matrix: A confusion matrix is a table that is used to evaluate the performance of a classification model. You can also visualize the performance of an algorithm. The fundamental of a confusion matrix is the number of correct and incorrect predictions are summed up class-wise.

In [68]:
# import the metrics class
from sklearn import metrics
cnf_matrix = metrics.confusion_matrix(y_pred, y_test)
cnf_matrix
Out[68]:
array([[119,  26],
       [ 11,  36]], dtype=int64)

Here, you can see the confusion matrix in the form of the array object. The dimension of this matrix is 2*2 because this model is binary classification. You have two classes 0 and 1. Diagonal values represent accurate predictions, while non-diagonal elements are inaccurate predictions. In the output, 119 and 36 are actual predictions, and 26 and 11 are incorrect predictions.

Visualizing Confusion Matrix using Heatmap: Let's visualize the results of the model in the form of a confusion matrix using matplotlib and seaborn.

In [69]:
class_names=[0,1] # name  of classes
fig, ax = plt.subplots()
tick_marks = np.arange(len(class_names))
plt.xticks(tick_marks, class_names)
plt.yticks(tick_marks, class_names)
# create heatmap
sns.heatmap(pd.DataFrame(cnf_matrix), annot=True, cmap="YlGnBu" ,fmt='g')
ax.xaxis.set_label_position("top")
plt.tight_layout()
plt.title('Confusion matrix', y=1.1)
plt.ylabel('Predicted label')
plt.xlabel('Actual label')
Out[69]:
Text(0.5, 257.44, 'Actual label')

Confusion Matrix Evaluation Metrics: Let's evaluate the model using model evaluation metrics such as accuracy, precision, and recall.

In [70]:
print("Accuracy:",metrics.accuracy_score(y_test, y_pred))
print("Precision:",metrics.precision_score(y_test, y_pred))
print("Recall:",metrics.recall_score(y_test, y_pred))
print("F1-score:",metrics.f1_score(y_test, y_pred))
Accuracy: 0.8072916666666666
Precision: 0.7659574468085106
Recall: 0.5806451612903226
F1-score: 0.6605504587155964
In [71]:
from sklearn.metrics import classification_report

print(classification_report(y_test, y_pred))
              precision    recall  f1-score   support

           0       0.82      0.92      0.87       130
           1       0.77      0.58      0.66        62

    accuracy                           0.81       192
   macro avg       0.79      0.75      0.76       192
weighted avg       0.80      0.81      0.80       192


Example: Credit Card Fraud Detection


For many companies, losses involving transaction fraud amount to more than 10% of their total expenses. The concern with these massive losses leads companies to constantly seek new solutions to prevent, detect and eliminate fraud. Machine Learning is one of the most promising technological weapons to combat financial fraud. The objective of this project is to create a simple Logistic Regression model capable of detecting fraud in credit card operations, thus seeking to minimize the risk and loss of the business.

The dataset used contains transactions carried out by European credit card holders that took place over two days in September 2013, and is a shorter version of a dataset that is available on kaggle at https://www.kaggle.com/mlg-ulb/creditcardfraud/version/3.

"It contains only numerical input variables which are the result of a PCA transformation. Unfortunately, due to confidentiality issues, we cannot provide the original features and more background information about the data. Features V1, V2, … V28 are the principal components obtained with PCA, the only features which have not been transformed with PCA are 'Time' and 'Amount'. Feature 'Time' contains the seconds elapsed between each transaction and the first transaction in the dataset. The feature 'Amount' is the transaction Amount, this feature can be used for example-dependant cost-senstive learning. Feature 'Class' is the response variable and it takes value 1 in case of fraud and 0 otherwise."

Columns Info.
Time Number of seconds elapsed between this transaction and the first transaction in the dataset
V1-V28 Result of a PCA Dimensionality reduction to protect user identities and sensitive features(v1-v28)
Amount Transaction amount
Class 1 for fraudulent transactions, 0 otherwise

NOTE: Principal Component Analysis, or PCA, is a dimensionality-reduction method that is often used to reduce the dimensionality of large data sets, by transforming a large set of variables into a smaller one that still contains most of the information in the large set.


Acknowledgements The dataset has been collected and analysed during a research collaboration of Worldline and the Machine Learning Group (http://mlg.ulb.ac.be) of ULB (Université Libre de Bruxelles) on big data mining and fraud detection. More details on current and past projects on related topics are available on https://www.researchgate.net/project/Fraud-detection-5 and the page of the DefeatFraud project

Please cite the following works:

Andrea Dal Pozzolo, Olivier Caelen, Reid A. Johnson and Gianluca Bontempi. Calibrating Probability with Undersampling for Unbalanced Classification. In Symposium on Computational Intelligence and Data Mining (CIDM), IEEE, 2015

Dal Pozzolo, Andrea; Caelen, Olivier; Le Borgne, Yann-Ael; Waterschoot, Serge; Bontempi, Gianluca. Learned lessons in credit card fraud detection from a practitioner perspective, Expert systems with applications,41,10,4915-4928,2014, Pergamon

Dal Pozzolo, Andrea; Boracchi, Giacomo; Caelen, Olivier; Alippi, Cesare; Bontempi, Gianluca. Credit card fraud detection: a realistic modeling and a novel learning strategy, IEEE transactions on neural networks and learning systems,29,8,3784-3797,2018,IEEE

Dal Pozzolo, Andrea Adaptive Machine learning for credit card fraud detection ULB MLG PhD thesis (supervised by G. Bontempi)

Carcillo, Fabrizio; Dal Pozzolo, Andrea; Le Borgne, Yann-Aël; Caelen, Olivier; Mazzer, Yannis; Bontempi, Gianluca. Scarff: a scalable framework for streaming credit card fraud detection with Spark, Information fusion,41, 182-194,2018,Elsevier

Carcillo, Fabrizio; Le Borgne, Yann-Aël; Caelen, Olivier; Bontempi, Gianluca. Streaming active learning strategies for real-life credit card fraud detection: assessment and visualization, International Journal of Data Science and Analytics, 5,4,285-300,2018,Springer International Publishing

Bertrand Lebichot, Yann-Aël Le Borgne, Liyun He, Frederic Oblé, Gianluca Bontempi Deep-Learning Domain Adaptation Techniques for Credit Cards Fraud Detection, INNSBDDL 2019: Recent Advances in Big Data and Deep Learning, pp 78-88, 2019

Fabrizio Carcillo, Yann-Aël Le Borgne, Olivier Caelen, Frederic Oblé, Gianluca Bontempi Combining Unsupervised and Supervised Learning in Credit Card Fraud Detection Information Sciences, 2019

As you know by now, the first step is to load some necessary libraries:

In [72]:
import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
import sklearn.metrics as metrics
import seaborn as sns
%matplotlib inline

Then, we should read the dataset and explore it using tools such as descriptive statistics:

In [73]:
# Import the dataset:
data = pd.read_csv("creditcard_m.csv")
data.head()
Out[73]:
Time V1 V2 V3 V4 V5 V6 V7 V8 V9 ... V21 V22 V23 V24 V25 V26 V27 V28 Amount Class
0 0 -1.359807 -0.072781 2.536347 1.378155 -0.338321 0.462388 0.239599 0.098698 0.363787 ... -0.018307 0.277838 -0.110474 0.066928 0.128539 -0.189115 0.133558 -0.021053 149.62 0
1 0 1.191857 0.266151 0.166480 0.448154 0.060018 -0.082361 -0.078803 0.085102 -0.255425 ... -0.225775 -0.638672 0.101288 -0.339846 0.167170 0.125895 -0.008983 0.014724 2.69 0
2 1 -1.358354 -1.340163 1.773209 0.379780 -0.503198 1.800499 0.791461 0.247676 -1.514654 ... 0.247998 0.771679 0.909412 -0.689281 -0.327642 -0.139097 -0.055353 -0.059752 378.66 0
3 1 -0.966272 -0.185226 1.792993 -0.863291 -0.010309 1.247203 0.237609 0.377436 -1.387024 ... -0.108300 0.005274 -0.190321 -1.175575 0.647376 -0.221929 0.062723 0.061458 123.50 0
4 2 -1.158233 0.877737 1.548718 0.403034 -0.407193 0.095921 0.592941 -0.270533 0.817739 ... -0.009431 0.798278 -0.137458 0.141267 -0.206010 0.502292 0.219422 0.215153 69.99 0

5 rows × 31 columns

As expected, the dataset has 31 columns and the target variable is located in the last one. Let's check and see whether we have any missing values in the dataset:

In [74]:
data.isnull().sum()
Out[74]:
Time      0
V1        0
V2        0
V3        0
V4        0
V5        0
V6        0
V7        0
V8        0
V9        0
V10       0
V11       0
V12       0
V13       0
V14       0
V15       0
V16       0
V17       0
V18       0
V19       0
V20       0
V21       0
V22       0
V23       0
V24       0
V25       0
V26       0
V27       0
V28       0
Amount    0
Class     0
dtype: int64

Great! No missing values!

In [75]:
data.describe()
Out[75]:
Time V1 V2 V3 V4 V5 V6 V7 V8 V9 ... V21 V22 V23 V24 V25 V26 V27 V28 Amount Class
count 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 ... 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000 140000.000000
mean 51858.089636 -0.249409 0.017429 0.672713 0.139812 -0.282655 0.078898 -0.117062 0.065205 -0.092188 ... -0.039503 -0.118547 -0.033419 0.012095 0.130218 0.023580 0.000651 0.002244 91.210270 0.001886
std 20867.521978 1.816521 1.614340 1.268657 1.322410 1.307926 1.284004 1.166853 1.230046 1.088755 ... 0.721638 0.635371 0.591946 0.595760 0.437298 0.492026 0.389003 0.307370 247.334466 0.043384
min 0.000000 -56.407510 -72.715728 -33.680984 -5.519697 -42.147898 -26.160506 -31.764946 -73.216718 -9.283925 ... -34.830382 -10.933144 -44.807735 -2.836627 -10.295397 -2.534330 -22.565679 -11.710896 0.000000 0.000000
25% 37912.750000 -1.020760 -0.564561 0.170073 -0.714009 -0.903653 -0.662022 -0.603820 -0.131071 -0.714753 ... -0.226206 -0.548060 -0.171763 -0.324841 -0.136182 -0.326158 -0.060305 -0.004172 6.000000 0.000000
50% 53665.500000 -0.269833 0.104206 0.750038 0.167473 -0.314849 -0.176600 -0.064160 0.080302 -0.154499 ... -0.059815 -0.095518 -0.044999 0.068815 0.166593 -0.064948 0.011781 0.023609 23.920000 0.000000
75% 69322.000000 1.157985 0.776185 1.363041 0.993562 0.237514 0.465404 0.409714 0.374985 0.482352 ... 0.113587 0.301082 0.083271 0.408740 0.418787 0.287195 0.087053 0.077127 81.000000 0.000000
max 83479.000000 1.960497 18.902453 9.382558 16.715537 34.801666 22.529298 36.677268 20.007208 15.594995 ... 27.202839 10.503090 19.002942 4.022866 5.541598 3.517346 12.152401 33.847808 19656.530000 1.000000

8 rows × 31 columns

In [76]:
print ('Not Fraud % ',round(data['Class'].value_counts()[0]/len(data)*100,2))
print ()
print (round(data.Amount[data.Class == 0].describe(),2))
print ()
print ()
print ('Fraud %    ',round(data['Class'].value_counts()[1]/len(data)*100,2))
print ()
print (round(data.Amount[data.Class == 1].describe(),2))
Not Fraud %  99.81

count    139736.00
mean         91.16
std         247.34
min           0.00
25%           6.02
50%          23.94
75%          80.92
max       19656.53
Name: Amount, dtype: float64


Fraud %     0.19

count     264.00
mean      115.39
std       245.19
min         0.00
25%         1.00
50%         9.56
75%        99.99
max      1809.68
Name: Amount, dtype: float64

We have a total of 140000 samples in this dataset. The PCA components (V1-V28) look as if they have similar spreads and rather small mean values in comparison to another predictors such as 'Time'. The majority (75%) of transactions are below 81 euros with some considerably high outliers (the max is 19656.53 euros). Around 0.19% of all the observed transactions were found to be fraudulent which means that we are dealing with an extremely unbalanced dataset. An important characteristic of such problems. Although the share may seem small, each fraud transaction can represent a very significant expense, which together can represent billions of dollars of lost revenue each year.

The next step is to defind our predictors and target:

In [77]:
#split dataset in features and target variable
y = data.Class # Target variable
X = data.loc[:, data.columns != "Class"] # Features

The next step would be to split our dataset and define the training and testing sets. The random seed (np.random.seed) is used to ensure that the same data is used for all runs. Let's do a 70/30 split:

In [78]:
# split X and y into training and testing sets
np.random.seed(123)

from sklearn.model_selection import train_test_split
X_train,X_test,y_train,y_test=train_test_split(X,y,test_size=0.30,random_state=1)

Now it is time for model development and prediction!

import the Logistic Regression module and create a Logistic Regression classifier object using LogisticRegression() function. Then, fit your model on the train set using fit() and perform prediction on the test set using predict().

In [79]:
# import the class
from sklearn.linear_model import LogisticRegression

# instantiate the model (using the default parameters)
#logreg = LogisticRegression()
logreg = LogisticRegression(solver='lbfgs',max_iter=10000)
# fit the model with data  -TRAIN the model
logreg.fit(X_train,y_train)
Out[79]:
LogisticRegression(C=1.0, class_weight=None, dual=False, fit_intercept=True,
                   intercept_scaling=1, l1_ratio=None, max_iter=10000,
                   multi_class='warn', n_jobs=None, penalty='l2',
                   random_state=None, solver='lbfgs', tol=0.0001, verbose=0,
                   warm_start=False)
In [80]:
# TEST the model
y_pred=logreg.predict(X_test)

Once the model and the predictions are ready, we can assess the performance of our classifier. First, we need to get our confusion matrix:

A confusion matrix is a table that is used to evaluate the performance of a classification model. You can also visualize the performance of an algorithm. The fundamental of a confusion matrix is the number of correct and incorrect predictions are summed up class-wise.

In [81]:
from sklearn import metrics
cnf_matrix = metrics.confusion_matrix(y_pred, y_test)
print(cnf_matrix)
tpos = cnf_matrix[0][0]
fneg = cnf_matrix[1][1]
fpos = cnf_matrix[0][1]
tneg = cnf_matrix[1][0]
print("True Positive Cases are",tpos) #How many non-fraud cases were identified as non-fraud cases - GOOD
print("True Negative Cases are",tneg) #How many Fraud cases were identified as Fraud cases - GOOD
print("False Positive Cases are",fpos) #How many Fraud cases were identified as non-fraud cases - BAD | (type 1 error)
print("False Negative Cases are",fneg) #How many non-fraud cases were identified as Fraud cases - BAD | (type 2 error)
[[34913    33]
 [   16    38]]
True Positive Cases are 34913
True Negative Cases are 16
False Positive Cases are 33
False Negative Cases are 38
In [82]:
class_names=[0,1] # name  of classes
fig, ax = plt.subplots()
tick_marks = np.arange(len(class_names))
plt.xticks(tick_marks, class_names)
plt.yticks(tick_marks, class_names)
# create heatmap
sns.heatmap(pd.DataFrame(cnf_matrix), annot=True, cmap="YlGnBu" ,fmt='g')
ax.xaxis.set_label_position("top")
plt.tight_layout()
plt.title('Confusion matrix', y=1.1)
plt.ylabel('Predicted label')
plt.xlabel('Actual label')
Out[82]:
Text(0.5, 257.44, 'Actual label')

We should go further and evaluate the model using model evaluation metrics such as accuracy, precision, and recall. These are calculated based on the confustion matrix:

In [83]:
print("Accuracy:",metrics.accuracy_score(y_test, y_pred))
Accuracy: 0.9986

That is a fantastic accuracy score, isn't it?

In [84]:
print("Precision:",metrics.precision_score(y_test, y_pred))
print("Recall:",metrics.recall_score(y_test, y_pred))
print("F1-score:",metrics.f1_score(y_test, y_pred))
Precision: 0.7037037037037037
Recall: 0.5352112676056338
F1-score: 0.608
In [85]:
from sklearn.metrics import classification_report

print(classification_report(y_test, y_pred))
              precision    recall  f1-score   support

           0       1.00      1.00      1.00     34929
           1       0.70      0.54      0.61        71

    accuracy                           1.00     35000
   macro avg       0.85      0.77      0.80     35000
weighted avg       1.00      1.00      1.00     35000

Although the accuracy is excellent, the model struggles with fraud detection and has not captured about 30 out of 71 fraudulent transactions.

Accuracy in a highly unbalanced data set does not represent a correct value for the efficiency of a model. That's where precision, recall and more specifically F1-score as their combinations becomes important:

  • Accuracy is used when the True Positives and True negatives are more important while F1-score is used when the False Negatives and False Positives are crucial

  • Accuracy can be used when the class distribution is similar while F1-score is a better metric when there are imbalanced classes as in the above case.

  • In most real-life classification problems, imbalanced class distribution exists and thus F1-score is a better metric to evaluate our model on.


This notebook was inspired by several blogposts including:

Here are some great reads on these topics:

Here are some great videos on these topics:



Exercise: Logistic Regression in Engineering

Think of a few applications of Logistic Regression in Engineering?

Make sure to cite any resources that you may use.

In [ ]:



In [ ]:

In [ ]:
